As a dedicated supplier of S Cam Brakes, I've witnessed firsthand the crucial role these components play in a vehicle's braking system. In this blog, I'll delve into how S Cam Brakes interact with the vehicle's braking system, shedding light on their mechanics, advantages, and maintenance requirements.
The Basics of S Cam Brakes
S Cam Brakes are a type of drum brake commonly used in heavy - duty vehicles such as trucks and trailers. The name "S Cam" comes from the shape of the camshaft inside the brake assembly. When the driver applies the brakes, air pressure is used to actuate the brake system. This air pressure is directed to the brake chamber, which contains a diaphragm. As the air pressure builds up, it pushes the diaphragm, which in turn moves a pushrod.
The pushrod is connected to a slack adjuster. The slack adjuster is an important component that compensates for the wear of the brake linings over time. It ensures that the correct amount of force is transmitted from the pushrod to the S Camshaft.
Interaction with the Braking System
1. Force Transmission
Once the pushrod moves due to the air pressure in the brake chamber, the slack adjuster rotates the S Camshaft. The S Camshaft has an "S" shape, and as it rotates, it forces the brake shoes apart. These brake shoes are lined with a friction material. When the brake shoes are pushed against the inner surface of the brake drum, friction is generated. This friction is what slows down or stops the rotation of the wheel, and consequently, the vehicle.
The interaction between the S Cam and the brake shoes is a carefully engineered process. The shape of the S Cam is designed to provide a progressive increase in force as it rotates. This ensures that the braking force is applied smoothly, preventing sudden jolts that could cause the vehicle to lose control.
2. Compatibility with Air Braking Systems
S Cam Brakes are well - suited for air braking systems, which are prevalent in heavy - duty vehicles. Air braking systems offer several advantages, such as reliable operation, easy adjustment, and the ability to transmit force over long distances. The S Cam Brake's design allows it to work seamlessly with the air pressure generated by the compressor in the vehicle's air braking system.
When the driver presses the brake pedal, the air control valve opens, allowing compressed air to flow into the brake chambers. This air pressure is then used to actuate the S Cam Brakes at each wheel. The entire process is coordinated to ensure that all wheels receive the appropriate amount of braking force, maintaining the vehicle's stability during braking.
Advantages of S Cam Brakes
1. High Braking Force
One of the main advantages of S Cam Brakes is their ability to generate high braking forces. The design of the S Cam allows for a large mechanical advantage, which means that a relatively small amount of air pressure can produce a significant amount of force on the brake shoes. This is especially important for heavy - duty vehicles that need to stop quickly and safely, even when carrying large loads.
2. Durability
S Cam Brakes are known for their durability. The components are made from high - quality materials that can withstand the high temperatures and forces generated during braking. The brake shoes and drums are designed to resist wear, and the S Camshaft is engineered to last for a long time. This makes S Cam Brakes a reliable choice for vehicles that are used in demanding applications.
3. Easy Maintenance
Maintenance of S Cam Brakes is relatively straightforward. The slack adjuster can be easily adjusted to compensate for brake lining wear. Additionally, the brake shoes and drums can be inspected and replaced when necessary. This ease of maintenance reduces downtime for vehicles, ensuring that they can stay on the road and in operation.
Applications of S Cam Brakes
S Cam Brakes are widely used in various types of heavy - duty vehicles. For trailers, they are an essential component for ensuring safe braking. Our Trailer S Camshaft is specifically designed to meet the unique requirements of trailer braking systems. Trailers often carry heavy loads, and the S Cam Brakes provide the necessary braking force to stop the trailer safely.
In rear axles of trucks, Rear Axle Brake Camshaft is crucial. The rear axles of trucks bear a significant portion of the vehicle's weight, and proper braking is essential for overall vehicle safety. S Cam Brakes on the rear axles help distribute the braking force evenly, preventing skidding and ensuring a smooth stop.

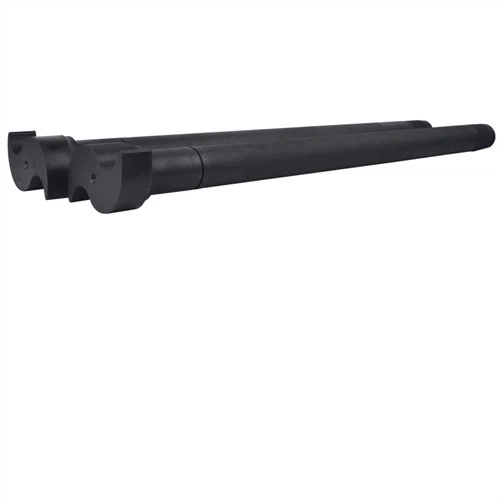

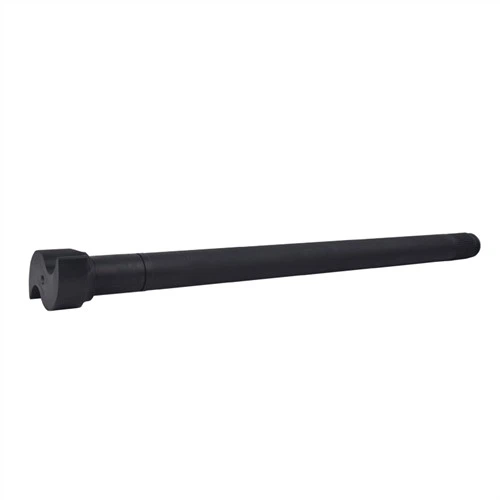

For trailers in general, Brake Camshaft for Trailer plays a vital role. Whether it's a small utility trailer or a large semi - trailer, the S Cam Brake system provides reliable and efficient braking performance.
Maintenance and Inspection
Regular maintenance and inspection of S Cam Brakes are essential to ensure their proper functioning. Here are some key maintenance steps:
1. Slack Adjuster Inspection
The slack adjuster should be inspected regularly to ensure that it is properly adjusted. If the slack adjuster is too loose, the brakes may not engage fully, leading to longer stopping distances. If it is too tight, it can cause premature wear of the brake components.
2. Brake Lining Inspection
The brake linings should be inspected for wear. Over time, the friction material on the brake shoes will wear down. If the lining thickness is below the recommended level, the brake shoes should be replaced. This is crucial for maintaining the braking efficiency of the S Cam Brakes.
3. S Camshaft Lubrication
The S Camshaft should be lubricated periodically to ensure smooth rotation. Proper lubrication reduces friction and wear on the camshaft and other components, extending their lifespan.
Conclusion
In conclusion, S Cam Brakes are a vital part of a vehicle's braking system, especially in heavy - duty applications. Their interaction with the air braking system is a well - orchestrated process that ensures reliable and efficient braking. The high braking force, durability, and ease of maintenance make them a popular choice for trucks, trailers, and other heavy - duty vehicles.
If you are in the market for high - quality S Cam Brakes or related components, we are here to assist you. Our extensive range of products, including Trailer S Camshaft, Rear Axle Brake Camshaft, and Brake Camshaft for Trailer, is designed to meet the highest industry standards. Contact us today to start a procurement discussion and find the best solutions for your vehicle's braking needs.
